ДИЗЕЛЬНЫЕ ГЕНЕРАТОРЫ

ПОСТАВКИ ЗАПАСНЫХ ЧАСТЕЙ


РЕМОНТ ДИЗЕЛЬНЫХ ДВИГАТЕЛЕЙ
CUMMINS, DEUTZ, CATERPILLAR, KOMATSU


Некоторые каталоги двигателей



Уважаемые господа!

Предлагаем вам пример каталога для двигателя КТТА19-С700, применяемого на автомобилях БелАЗ.

Пожалуйста, присылайте нам информацию о Ваших потребностях.

Serial #: 37221562 Build Date: January 14, 2006

Model: KTTA19-C700 Engine Config: D193077CX02

Fuel Pump #: 4076956 Fuel Pump Cal Code: E790

Filmcard: k CPL: CPL1253

Kitsets

Part #

Description

3800726

SET, SINGLE HEAD GASKET

3800728

SET, UPPER ENGINE GASKET

4089391

SET, LOWER ENGINE GASKET

option

4-sale

part name

remarks

ad4007

n

ad4007

pulley to drive alternator.

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image002.gif

ref no

part number

part name

req

remarks

ad4007

accessory drive pulley

pulley to drive alternator.

right side of engine. for

use with the one piece

aluminium gear cover.

1

3002331

pulley, alternator

1

option

4-sale

part name

remarks

ad4014

n

ad4014

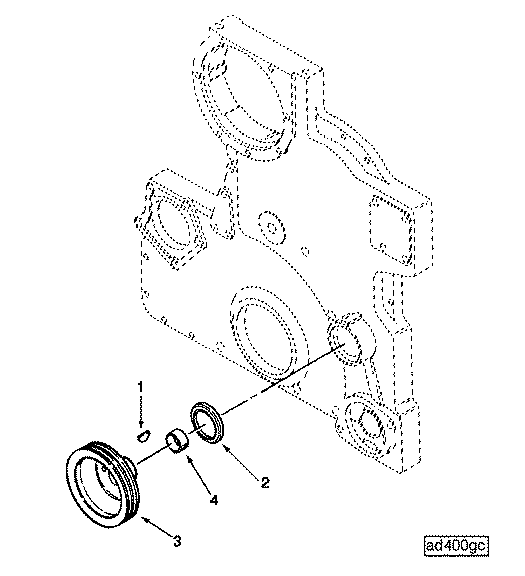

accessory drive with two

the Description: the Description: the Description: the Name: accessory drive pulley

ref no

part number

part name

req

remarks

ad4014

accessory drive pulley

accessory drive with two

groove pulley to drive freon

compressor. fuel pump side of

engine. use with cf4004.

1

s 316

key, plain woodruff

1

2

3200287

seal, keyway

1

3014695

pulley, accessory drive

1

3

3011826

pulley, accessory drive

1

4

190397

sleeve, wear

1

option

4-sale

part name

remarks

ap4010-02

n

ap4010-02

note: agency approval

the Description: the Description: the Description: the Name: engine dataplate

ref no

part number

part name

req

remarks

ap4010-02

agency approval

note: agency approval

certified by: none

this option may only be used

in applications that do not

require certification. it

may not be used in the us for

industrial non-road without

an exemption.

1

4000506

dataplate

1

© 1984-2003 cummins inc., box 3005, columbus, in 47202-3005 u.s.a.

option

4-sale

part name

remarks

bp4016

n

bp4016

idler gear

the Description: the Description: the Description: the Name: idler gear

ref no

part number

part name

req

remarks

bp4016

idler gear

idler gear

1

3202114

shaft, idler

1

3004684

gear, idler

1

2

3004599

gear, idler

1

3

3004686

bushing

1

3004685

gear, idler

1

3

3004686

bushing

1

4

3004680

gear, idler

1

3007803

idler gear, mtg

2

5

130083

bearing, thrust

2

6

207527

screw, twelve point cap

1

5/8 - 18 x 3"

7

3200772

washer, plain

1

5/8"

© 1984-2003 cummins inc., box 3005, columbus, in 47202-3005 u.s.a.

bp4016-01

n

bp4016-01

camshaft mounting

ref no

part number

part name

req

remarks

bp4016-01

camshaft mounting

camshaft mounting

mp4970

camshaft, mtg

1

s 112

screw, hexagon head cap

2

3/8 - 16 x 1"

mp4981

cover, camshaft mtg

1

3014766

screw, captive washer cap

3

3/8 - 16 x 1 3/64"

3081621

gasket, camshaft cover

1

3081620

cover, camshaft

1

3628755

cover, camshaft

3

3628756

cover, camshaft

1

3410067

follower, camshaft

1

ar10627

follower, camshaft

6

ar10626

shaft, cam follower

6

205439

ring, retaining

12

3039163

lever, cam follower

6

3039164

lever, cam follower

12

127362

washer, plain

12

3/8"

3002886

screw, cam follower shaft

12

mp 5297

cover, cam follower mtg

6

3040721

gasket, cam fol housing

1

3040837

screw, captive washer cap

2

3/8 - 16 x 2 1/4"

3040838

screw, captive washer cap

2

3/8 - 16 x 1 1/4"

© 1984-2003 cummins inc., box 3005, columbus, in 47202-3005 u.s.a.

option

4-sale

part name

remarks

bp4016-01

n

bp4016-01

injector mounting

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image006.gif

ref no

part number

part name

req

remarks

bp4016-01

injector mounting

injector mounting

3073205

injector mtg

6

1

131026

seal, o ring

1

2

207244

seal, injector

1

3

3070962

screw, hexagon head cap

2

4

3023095

washer, sealing

2

5

3627044

connection, oil transfer

1

6

3179021

screw, banjo connector

1

© 1984-2003 cummins inc., box 3005, columbus, in 47202-3005 u.s.a.

option

4-sale

part name

remarks

bp4016-02

n

bp4016-02

crankshaft and bearings

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image007.gif

ref no

part number

part name

req

remarks

bp4016-02

crankshaft and bearings

crankshaft and bearings

3347569

crankshaft

1

1

3096362

crankshaft, engine

1

2

4953165

gear, crankshaft

1

3

206904

key, plain woodruff

1

ar12270

shell, main bearing std

1

standard

4

205140

bearing, main

5

5

205150

bearing, main

5

6

205160

bearing, main

2

7

205170

bearing, main

2

8

205112

bearing, thrust

4

ar12271

shell, main bearing.010

a/r

main bearing set (0.010 o/s)

4

205141

bearing, main

5

5

205151

bearing, main

5

6

205161

bearing, main

2

7

205171

bearing, main

2

8

205112

bearing, thrust

4

ar12272

shell, main bearing.020

a/r

0.020 oversized

4

205142

bearing, main

5

5

205152

bearing, main

5

6

205162

bearing, main

2

7

205170

bearing, main

2

8

205112

bearing, thrust

4

ar12273

shell, main bearing.030

a/r

0.030 oversized

4

205143

bearing, main

5

5

205153

bearing, main

5

6

205163

bearing, main

2

7

205173

bearing, main

2

8

205112

bearing, thrust

4

© 1984-2003 cummins inc., box 3005, columbus, in 47202-3005 u.s.a.

option

4-sale

part name

Remarks

bp4016-02

n

bp4016-02

lube oil mounting pump

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image008.gif

ref no

part number

part name

req

remarks

bp4016-02

lube oil mounting pump

lube oil mounting pump

mp4973

pump, lub oil mtg

1

1

205898

seal, o ring

2

2

207135

seal, rectangular ring

1

3

3010596

screw, captive washer cap

3

3/8 - 16 x 1 1/4"

3047549

pump, lubricating oil

1

recon equivalent 3047549 rx

4

s 126

screw, hexagon head cap

2

3/8 - 16 x 2 1/2"

5

s 141

screw, hexagon head cap

1

3/8 - 16 x 2 3/4"

6

s 199a

screw, hexagon head cap

1

3/8 - 16 x 4"

7

s 604

washer, lock

4

3/8"

8

148554

dowel, pin

1

9

205061

gasket, lub oil pump

1

10

205080

plunger, prs regulator

1

205202

gear & shaft

1

11

205052

shaft, idler

1

12

3049543

gear, lub oil pumping

1

207279

pump, lubricating oil

1

13

70760

dowel, pin

1

205057

body, lubricating oil pump

1

14

69521

bushing

2

15

205049

body, lubricating oil pump

1

205077

gear & shaft

1

12

3049543

gear, lub oil pumping

1

16

205065

shaft, lub pump drive

1

17

207252

gear, lubricating oil pump

1

207252

gear, lubricating oil pump

1

3047548

cover, lub oil pump

1

14

69521

bushing

2

18

3009955

cover, lub oil pump

1

19

3062415

spring, compression

1

20

3200934

plug, retainer

1

21

3088291

washer, plain

1

© 1984-2003 cummins inc., box 3005, columbus, in 47202-3005 u.s.a.

option

4-sale

part name

remarks

bp4016-03

n

bp4016-03

rocker mounting lever

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image009.gif

ref no

part number

part name

req

remarks

bp4016-03

rocker mounting lever

rocker mounting lever

3070784

housing, rocker lever mtg

6

1

s 125

screw, hexagon head cap

1

1/2 - 13 x 2 inch.

2

205128

washer, plain

6

1/2 inch.

3

108602

screw, hexagon head cap

5

1/2 - 13 x 3 3/4 inch.

4

3630839

gasket, rkr lever housing

1

3065810

levers, rocker

6

3053478

lever, rocker

1

5

194037

socket, rocker lever

1

6

207226

bushing

1

7

3049437

lever, rocker

1

3053477

lever, rocker

1

8

208084

rivet

1

9

3049432

lever, rocker

1

10

207344

bushing

1

3053476

lever, rocker

1

8

208084

rivet

1

10

207344

bushing

1

11

3049438

lever, rocker

1

3176773

shaft, rocker lever

1

12

203933

plug, expansion

1

13

3176875

shaft, rocker lever

1

mp 5480

lever, rocker mtg

6

2

205128

washer, plain

2

1/2 inch.

14

205394

screw, twelve point cap

1

1/2 - 13 x 4 1/2 inch.

15

s 212

nut, regular hexagon

3

1/2 - 20 unf.

16

168306

screw, slotted set

3

17

205393

screw, twelve point cap

1

1/2 - 13 x 2 inch.

18

3627023

screw, hexagon head cap

1

1/4 - 20 x 3/8 inch.

19

70704

washer, plain

1

1/4 inch.

20

3017961

rod, push

6

21

3057139

rod, push

12

22

3002993

dowel, ring

12

© 1984-2003 cummins inc., box 3005, columbus, in 47202-3005 u.s.a.

option

4-sale

part name

remarks

bp4016-03

n

bp4016-03

oil manifold

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image010.gif

ref no

part number

part name

req

remarks

bp4016-03

oil manifold

oil manifold

3040232

manifold, oil

1

118346

union, male

1

1

3100515

union, male

1

2

3037537

seal, o ring

1

3

127018

washer, plain

8

1/4"

4

3001811

screw, twelve point cap

8

1/4 - 20 x 1"

5

3084620

manifold, oil

1

3023217

plug, threaded

2

7/16 - 20 unf

6

3036666

seal, o ring

2

7

3630034

plug, threaded

2

8

3037657

connection, oil supply

1

9

3001340

seal, o ring

1

10

3084539

seal, o ring

6

option

4-sale

part name

remarks

cp4053-02

n

cp4053-02

13.2 cfm 550 b/w air

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image011.gif

ref no

part number

part name

req

remarks

cp4053-02

air compressor

13.2 cfm 550 b/w air

compressor without breather.

non-turbocharged air supply

to be plumbed by the

customer.

1

s 1002 a

connector, male

1

2

204995

elbow, male adapter

2

3005386

b-w air cpr mounting

1

3

s 606 a

washer, lock

3

3/8"

4

69324

washer, plain

4

3/8 inch.

5

108330

washer, plain

1

3/8"

6

199358

sleeve, spline coupling

1

7

205354

screw, twelve point cap

3

3/8 - 16 x 1 inch.

8

206402

screw, twelve point cap

4

7/16 - 14 x 1 1/2 inch.

9

3023084

brace, air compressor

1

10

3069102

gasket, air compressor

1

3022314

compreesor, air

11

200398

hub, spline coupling

1

12

3417958

compressor, air

1

13

4922336

tube, water outlet

1

3077255

tube, water inlet

1

3

s 606 a

washer, lock

2

3/8"

7

205354

screw, twelve point cap

2

3/8 - 16 x 1 inch.

14

s 604

washer, lock

2

3/8"

15

3103015

seal, grommet

1

16

s 1004 a

nut, tube

1

17

179904

clamp, hose

2

3/8 - 7/8 in.

18

207117

gasket, air compressor

1

19

3065697

hose, plain

1

20

3074681

connection, water inlet

1

21

3074682

tube, water inlet

1

3200757

tube, cpr wtr outlet mtg

1

22

s 114

screw, hexagon head cap

1

1/4 - 20 x 3/4"

23

s 600

washer, lock

1

1/4"

24

3033098

brace, tube

1

25

s 631

washer, plain

1

1/4"

26

68152

clip

1

mp2013

strainer, air compressor

1

27

103426

gasket, connection

1

28

166619

cleaner, air

1

29

s 171 a

screw, hexagon head cap

2

5/16 - 18 x 1/2 inch.

30

s 605

washer, lock

2

5/16"

option

4-sale

part name

remarks

cp8002-01

n

cp8002-01

bendix westinghouse air

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image012.gif

ref no

part number

part name

req

remarks

cp8002-01

air governor

bendix westinghouse air

governor opens at 100 psi and

closes at 120 psi. for

direct mounting.

1

181461

governor, air compressor

1

2

s 185 a

screw, hexagon head cap

2

5/16 - 18 x 3"

3

s 605

washer, lock

2

5/16"

4

127184

washer, plain

2

1/4 inch.

5

185848

gasket, air compressor

1

6

3008465

plug, pipe

4

1/8 npt

option

4-sale

part name

remarks

da4022-02

n

da4022-02

viscous type vibration damper

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image013.gif

ref no

part number

part name

req

remarks

da4022-02

vibration damper

viscous type vibration damper

13.55" x 1.75". crankshaft

pulley has provisions for

mounting an additional front

power take-off pulley or

front power take-off adapter.

belt driven fan arrangement.

1

3081040

damper, vibration

1

2

205378

screw, twelve point cap

6

1/2 - 13 x 1 1/4 inch.

3

205059

washer, plain

6

3/4"

4

206881

screw, twelve point cap

3/4 - 16 x 4"

5

s 608

washer, lock

6

1/2"

6

3002175

pulley, crankshaft

1

4-sale

part name

remarks

ea8081

n

ea8081

3/4-16 unf plug-in type

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image014.gif

ref no

part number

part name

req

remarks

ea8081

magnetic pickup

3/4-16 unf plug-in type

magnetic pick-up for use

with customer supplied

control system. supplied

in kit.

1

3039524

pickup, magnetic

1

option

4-sale

part name

Remarks

ec4079-01

n

ec4079-01

low lube oil pressure switch

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image015.gif

ref no

part number

part name

req

remarks

ec4079-01

low oil pressure switch

low lube oil pressure switch

switch shuts engine down on

decreasing pressure at 12 psi

(+ or-2 psi) 83 kpa (+ or -

14 kpa) fungus and corrosion

resistant

cannot be used with cummins

supplied engine wiring

harness.

supplied mounted

for use on k19 engines.

1

3056356

harness, wiring

1

3076720

connector, female

1

2

3037537

seal, o ring

1

3

3076720

connector, female

1

4

3408607

switch, pressure

1

option

4-sale

part name

remarks

ec8258-01

n

ec8258-01

combination electric

ref no

part number

part name

req

remarks

ec8258-01

tachometre and hourmeter

combination electric

tachometre and

hourmeter for 24volt

electrical system.

scale range 0-3000 rpm.

requires magnetic pick-up.

supplied in kit.

1

3049555

hourmeter & tachometre

1

option

4-sale

part name

remarks

ec8289-02

n

ec8289-02

high coolant temperature

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image016.gif

ref no

part number

part name

req

remarks

ec8289-02

coolant temp switch

high coolant temperature

switch.

switch shuts engine down on

increasing temperature at 205

< + or - > 2 degrees f. 96 < +

or - > 1 degrees c. fungus

and corrosion resistant.

cannot be used with cummins

supplied engine wiring

harness.

supplied in kit.

replaces ec8006.

1

3408631

switch, temperature

1

2

3056356

harness, wiring

1

option

4-sale

part name

Remarks

ee4020-02

n

ee4020-02

mounting parts for delco remy

ref no

part number

part name

req

remarks

ee4020-02

alternator mounting

mounting parts for delco remy

and leece neville model

alternators. mounted in

standard location and belt

driven at 2.92 times engine

speed. for belt driven fan

drive arrangement only.

includes link, belt and 5

groove alternator pulley.

1

206996

belt, v ribbed

1

2

3002323

pulley, alternator

1

3

s 106

screw, hexagon head cap

1

1/2 - 13 x 1 3/4"

4

s 113

screw, hexagon head cap

1

1/2 - 13 x 1 1/2"

5

70897

nut, lock

1

1/2 - 20 unf

6

111445

washer, lock

2

7

158829

screw, hexagon head cap

1

1/2 - 20 x 6 1/2"

8

203310

washer, plain

3

9/16"

3201188

link, adjusting

1

9

s 253

nut, regular hexagon jam

1

1/2 - 20 unf

10

206202

nut, regular hexagon jam

1

1/2 - 20 unf

11

3201185

bolt, eye

1

12

3201186

bolt, eye

1

13

3201187

link, adjusting

1

option

4-sale

part name

remarks

ee4060

n

ee4060

alternator

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image017.gif

ref no

part number

part name

req

remarks

ee4060

alternator

alternator

manufacture/model:

delco remy 33si

voltage: 24

amperage: 100 ground type:

negative insulated: no built

in voltage regulator: yes

wiring harness included: no

ground strap required: yes

ground strap included: yes

cooling fan included: yes

rotation: cw or ccw

marine corrosion resistant.

1

3400698

alternator

1

2

3202162

wire, ground

1

option

4-sale

part name

remarks

em4058-07

n

em4058-07

front engine support

ref no

part number

part name

req

remarks

em4058-07

front engine support

front engine support

2 bolt pad type front engine

support with 51/64" diameter

holes to accept the commonly

used 3/4" diameter lord

mount.

includes aluminium gear cover

without front out hydraulic

pump drive provisions.

s 173 a

screw, hexagon head cap

6

5/8 - 11 x 2 1/4 inch.

s 603

washer, lock

6

5/8 inch.

206343

support, front engine

1

70645

dowel, pin

1

102957

dowel, diamond

1

3014766

screw, captive washer cap

12

3/8 - 16 x 1 3/64 inch.

3410141

gasket, cover plate

1

3016740

cover, gear

1

s 1040 a

elbow, male adapter

1

3009620

spring, compression

1

3012302

cover, gear

1

132770

bushing

2

205133

bushing

1

3016792

seal, oil

1

3016791

seal, oil

1

3628895

seal, oil

1

4094815

cover, gear

1

s 965 e

plug, pipe

1

1/16 npt.

3034412

seal, o ring

6

3040810

plug, threaded

3

3046201

seal, o ring

3

3066324

plug, threaded

6

4094813

cover, gear

1

3015525

ring, retaining

1

3018914

guide, barring shaft

1

3018909

bushing

1

3018910

bearing, thrust

1

3018911

pin, spiral

1

3019154

guide, barring shaft

1

3019152

gear, engine barring

1

3019153

shaft, barring

1

3081950

union, male

1

3037537

seal, o ring

1

3085824

union, male

1

3922794

seal, o ring

1

3200642

plate, clamping

1

3201125

seal, o ring

1

3044522

plate, gear cover

1

206217

stud

1

206218

stud

1

3019961

nut, plug

2

3/8 - 16 unc.

3044521

plate, gear cover

1

3160924

seal, dust

1

3200642

plate, clamping

1

3331663

seal, dust

1

3628894

seal, dust

1

no service kit.

option

4-sale

part name

remarks

em4703-02

n

em4703-02

mounting for aluminium gear

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image018.gif

ref no

part number

part name

req

remarks

em4703-02

gear cover mounting

mounting for aluminium gear

cover.

1

s 105

screw, hexagon head cap

2

3/8 - 16 x 3 1/2 inch.

2

s 163

screw, hexagon head cap

2

3/8 - 16 x 3 1/4 inch.

3

s 199 a

screw, hexagon head cap

4

3/8 - 16 x 4"

4

s 199 b

screw, hexagon head cap

5

3/8 - 16 3 3/4"

5

s 602

washer, plain

2

3/8"

6

s 604

washer, lock

13

3/8"

7

s 915 a

plug, pipe

1

1/2 npt

8

67622

plug, pipe

1

3/8 npt

9

205375

screw, twelve point cap

1

3/8 - 16 x 2 1/4"

10

3010596

screw, captive washer cap

3

3/8 - 16 x 1 1/4"

11

3012476

screw, captive washer cap

2

3/8 - 16 x 3"

12

3013786

plug, pipe

1

3/8 npt

13

3016787

seal, oil

1

14

3016791

seal, oil

1

15

3025460

plug, pipe

4

1/8 npt

16

3074690

gasket, gear cover

1

17

3201128

nut, regular hexagon

4

3/8 - 16 unc

18

3628895

seal, oil

1

option

4-sale

part name

remarks

fa4132-03

n

fa4132-03

fan drive arrangement

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image019.gif

ref no

part number

part name

req

remarks

fa4132-03

drive, fan

fan drive arrangement

belt driven.70 to 1 drive

ratio with 14.5inches fan

centre.

includes alternator mounting

bracket. for mounting engine

fan use grade 8 capscrew 1/2-

13 with a minimum of 3/4 inch

thread engagement in fan hub.

requires 6 capscrews and lock

washers.

1

3033665

belt, v ribbed

1

3033666

hub, fan

1

2

s 113

screw, hexagon head cap

6

1/2 - 13 x 1 1/2"

3

s 911 b

plug, pipe

2

1/8 npt

4

111445

washer, lock

6

5

145551

seal, o ring

1

6

3001280

ring, retaining

1

7

3001281

bearing, roller

2

8

3002183

hub, fan

1

9

3002193

cover, fan hub

1

10

3002210

spacer, bearing

1

11

3002211

spacer, bearing

1

12

3002222

pulley, fan

1

13

3012467

washer, plain

1

1 1/8 inch.

14

3036137

spindle, fan

1

15

3062393

seal, oil

1

16

3202206

nut, lock

1

1 1/8 - 12 unf.

3033799

support, alternator

1

17

127362

washer, plain

4

3/8"

18

3012474

screw, captive washer cap

2

3/8 - 16 x 2"

19

s 169 a

screw, hexagon head cap

2

3/8 - 16 x 4 1/2 inch.

20

3041859

support, alternator

1

21

3033667

spacer, mounting

1

22

s 604

washer, lock

2

3/8"

3200798

hub, fan mtg

1

22

s 604

washer, lock

7

3/8"

23

s 205

nut, regular hexagon

7

3/8 - 24 unf

24

64929

stud

2

25

102397

stud

4

26

4922501

seal, o ring

1

27

3201117

stud

1

28

3201659

seal, rectangular ring

1

4095034

tensioner, belt

1

2

s 113

screw, hexagon head cap

1

1/2 - 13 x 1 1/2"

29

s 106 c

screw, hexagon head cap

3

3/8 - 16 x 4 3/4 inch.

30

s 178 c

screw, hexagon head cap

3

31

68050

washer, plain

1

1/2 inch.

32

3036900

washer, plain

3

1/2"

33

3042329

washer, plain

3

3/8"

34

3042330

washer, plain

2

3/8 inch.

35

s 253

nut, regular hexagon jam

2

1/2 - 20 unf

36

s 500

pin, cotter

1

37

146517

nut, regular hexagon

4

1/2 - 20 unf.

38

3201128

nut, regular hexagon

3

3/8 - 16 unc

39

3076301

clamp, wire tie

1

40

3086244

housing, belt tensioner

1

41

3086249

screw, hexagon head cap

1

42

3086251

retainer, spring

1

43

3086252

pin, clevis

1

44

3086253

end, control rod

1

45

3086269

spring, compression

1

46

3090194

seal, dust

1

47

3402156

guide, spring

1

48

3402157

retainer, control rod

1

49

4057646

bracket, belt tensioner

1

4009442

lever, idler

1

39

3076301

clamp, wire tie

2

50

3410134

lever, idler

1

51

s 249

nut, regular hexagon jam

1

3/4 - 16 unf.

52

s 626

washer, plain

2

5/16"

53

s 640

washer, plain

1

3/4 in.

54

135530

ring, retaining

1

55

3201206

plug, expansion

1

56

3003354

bearing, roller

1

57

3004057

nut, lock

1

3/4 - 16 unf.

58

3201228

pulley, idler

1

59

3065830

seal, oil

1

60

4009433

shaft, idler

1

61

3086278

washer, plain

1

62

3410136

seal, dust

1

3410132

support, pivot shaft

1

63

3329556

bushing

2

64

3410133

support, pivot shaft

1

option

4-sale

part name

Remarks

ff8702-01

n

ff8702-01

fuel pump inlet fitting,

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image020.gif

ref no

part number

part name

req

remarks

ff8702-01

fuel pump inlet fitting

fuel pump inlet fitting,

elbow (90 degrees).

1

203848

elbow, male union

1

the Description: the Description: the Description: the Description: c:\program files (x86) \cummins\cepc3\snsearch\tmp00000004.gif

option

4-sale

part name

remarks

fh4126-02

n

fh4126-02

sae #1 cast iron flywheel

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image021.gif

ref no

part number

part name

req

remarks

fh4126-02

flywheel housing

sae #1 cast iron flywheel

housing for dry application.

has provisions for dual 3/4-

16 magnetic pickup and both

sides machined for starter

mounting.

1

s 103 a

screw, hexagon head cap

2

5/8 - 11 x 2"

2

s 116

screw, hexagon head cap

10

5/8 - 11 x 1 1/2".

3

s 603

washer, lock

12

5/8"

4

s 631

washer, plain

8

1/4"

5

172648

seal, rectangular ring

12

6

205247

seal, o ring

1

7

205409

screw, hexagon head cap

8

1/4 - 20 x 5/8".

8

60408

dowel, pin

2

9

3081794

housing, flywheel

1

10

3096260

seal, rectangular ring

1

11

3870890

seal, oil

1

3201078

cover, flywheel housing

1

12

3201056

cover, flywheel housing

1

13

3010595

screw, captive washer cap

4

3/8 - 16 x 1"

option

4-sale

part name

remarks

fh8713-02

n

fh8713-02

3/4-16 plug for the magnetic

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image022.gif

ref no

part number

part name

req

remarks

fh8713-02

magnetic pickup location p

3/4-16 plug for the magnetic

pick-up location in the

flywheel housing. for use

with both wet or dry flywheel

housings. required when

woodward 2301 ELECTRO -

hydraulic governor, american

bosch governor, cummins efc

governor, tachometre, or

speed switch is not

specified.

3201959

plug, mag pick-up hole

1

1

553856

gasket, oil drain

1

2

3201759

screw, hexagon head cap

1

3/4 - 16 x 1/2"

option

4-sale

part name

remarks

fn4402-02

n

fn4402-02

44inch diameter fan, sucker

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image023.gif

ref no

part number

part name

req

remarks

fn4402-02

44inch diameter fan, sucker

type, 8 blade aluminium with

Y

3inch diameter pilot and

y

5.5inch diameter bolt circle.

y

mounting thickness.538.

1

212682

fan, engine

1

4-sale

part name

remarks

fo4043

n

fo4043

oil fill incorporated into

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image024.gif

ref no

part number

part name

req

remarks

fo4043

oil filler location

oil fill incorporated into

the hydraulic pump drive

cover plate, rear side of

front gear cover. not for

use with gear cover mounted

hydraulic pump drives.

1

107981

cap, filler

1

2

3628755

cover, camshaft

1

3200976

cover, camshaft

1

3

135231

plug, expansion

1

4

3200413

bracket, oil tube

1

option

4-sale

part name

remarks

fp4816-02

n

fp4816-02

fuel pump drive for use

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image025.gif

ref no

part number

part name

req

remarks

fp4816-02

fuel pump drive

fuel pump drive for use

with air compressor.

3016735

drive, accessory

1

1

s 316

key, plain woodruff

1

2

207253

gear, accessory drive

1

3

3000174

hub, spline coupling

1

4

3009511

support, accessory drive

1

5

3014103

washer, plain

1

1 1/32 inch.

6

3025458

plug, pipe

2

1/8 npt

7

3045136

washer, plain

1

1/2 inch.

8

3045137

screw, hexagon head cap

1

1/2 - 20 x 2 inch.

9

3045229

shaft, accessory drive

1

3017472

drive, accessory mtg

1

10

s 205

nut, regular hexagon

1

3/8 - 24 unf

11

s 602

washer, plain

1

3/8"

12

s 604

washer, lock

1

3/8"

13

3033038

screw, captive washer cap

3

3/8 - 16 x 1 5/8"

14

3044413

screw, captive washer cap

1

3/8 - 16 x 2"

15

3410171

gasket, acc drive support

1

option

4-sale

part name

fp4864

n

fp4864

ref no

part number

part name

req

remarks

fp4864

plumbing, fuel pump

afc fuel pump air control

plumbing

for kta with one cylinder air

compressor and afc/auto or vs

fuel pump.

68138

connector, male

1

112105

elbow, male adapter

1

3070965

tube, air fuel control

1

3038031

nut, tube

2

3070964

piece

1

option

4-sale

part name

Remarks

fp4864-02

n

fp4864-02

air fuel control plumbing for

ref no

part number

part name

req

remarks

fp4864-02

air fuel control plumbing

air fuel control plumbing for

kta with one cylinder air

compressor, afc auto or

variable speed fuel pump,

valves and over head tanks.

without asa valve.

68138

connector, male

1

112105

elbow, male adapter

1

3070965

tube, air fuel control

1

3038031

nut, tube

2

option

4-sale

part name

remarks

fp4967-01

n

fp4967-01

ptg-vs/afc with 3021990

ref no

part number

part name

req

remarks

$housing, fuel pump

ptg-vs/afc with 3021990

hardware kit.

fp4967-01

housing, fuel pump

1

1

3025695

body, fuel pump

1

2

108384

sleeve, spring pack

1

3

202682

housing, spring pack

1

4

214139

plug, ball

3

5

100193

bushing, tachometre drive

1

6

118227

dowel, ring

2

7

218548

barrel, governor

1

8

212147

barrel, governor

1

3040760

plunger, governor

1

9

70690

driver, governor plunger

1

10

3040750

plunger, governor

1

11

3027633

bearing, thrust

1

12

3048557

spacer, bearing

1

ar40230

drive, governor plunger

9

70690

driver, governor plunger

1

13

212350

plunger, governor

1

14

3035230

bearing, thrust

1

15

100478

seal, o ring

1

16

163945

ring, retaining

1

17

213768

seal, o ring

1

18

3006175

screw, fuel pump adjusting

1

3006430

shaft, throttle

1

19

3006343

stop, throttle lever

1

20

3006344

screw, socket set

2

21

3046680

shaft, throttle

1

22

201007

cap, fuel pump filter

1

23

145504

seal, o ring

1

24

128807

ring, retaining

1

25

146483

screen, filter

1

26

70700

spring, compression

1

27

3035823

spring, compression

1

28

145505

seal, o ring

1

29

70775

seal, o ring

1

30

68061 a

seal, o ring

1

31

3004904

plate, cover

1

32

3000438

plug, retainer

1

33

70772 a

screw, fillister head cap

3

34

3004293

plug, o ring

1

35

s 16240

ring, retaining

2

36

3028064

gasket, cover plate

1

37

213769

plug, ball

1

38

3000446

cover, fuel control

1

39

105375

nameplate

1

40

3025460

plug, pipe

1

1/8 npt

41

3046407

screw, socket set

1

42

s 2286

screw, drive

4

43

110058

nut, fuel pump adjusting

1

1/4 - 28 unf.

44

101841

shim

a/r

44

101842

shim

a/r

44

101843

shim

a/r

option

4-sale

part name

remarks

fs4042

n

fs4042

fuel system accessories

ref no

part number

part name

req

remarks

fs4042

accessories, fuel system

fuel system accessories

check valves for fuel supply

and drain.

check valves contained in ft

options.

includes flexible hoses of

length 26 and 23inches.

supplied in kit.

special option for belaz

front end loader application.

as 8023 ss

hose, flexible

1

as10026 ss

hose, flexible

1

option

4-sale

part name

remarks

ft42015-05

n

ft42015-05

fuel tubing for front fuel

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image026.gif

ref no

part number

part name

req

remarks

ft42015-05

fuel tubing

fuel tubing for front fuel

block with afc auto or vs

fuel pump, one cylinder

cummins, borg warner 501 or

borg warner 700 air

compressor, check valves,

leakage fix and gear pump

cooling.

1

s 607

washer, lock

2

#10

2

70620

washer, plain

2

1/8 inch.

3

100478

seal, o ring

2

4

118226

screw, socket head cap

2

#10 - 24 x 1 1/4 inch.

5

127018

washer, plain

12

1/4"

207441

manifold, fuel

1

6

217631

plug, pipe

4

1/16 npt

7

3200738

manifold, fuel

1

8

207442

connection, fuel block

1

9

3001340

seal, o ring

12

10

3001811

screw, twelve point cap

12

1/4 - 20 x 1"

11

69324

washer, plain

4

3/8 inch.

12

135783

washer, lock

4

7/16 inch.

13

206326

screw, twelve point cap

4

7/16-14 x 1 1/4 inch.

14

3046200

spider, jaw coupling

1

15

3069103

gasket, fuel pump

1

16

68138

connector, male

2

1/8 nptf x 7/16-20

17

181213

elbow, plain adapter

1

18

s 156 b

screw, hexagon head cap

1

1/4-20 x 1 1/2"

19

70704

washer, plain

1

1/4"

20

3010595

screw, captive washer cap

2

3/8 - 16 x 1"

21

3028324

valve, check

1

22

3028325

valve, check

1

3032872

union, male

2

23

3100525

union, male

1

24

3037537

seal, o ring

1

25

3033023

elbow, male union

1

26

3033024

elbow, male union

1

27

3200069

bracket, check valve

1

28

3200070

bracket, check valve

1

29

3201614

spacer, mounting

1

30

3200404

tube, fuel supply

1

31

3200457

tube, fuel drain

1

32

176288

tee, female adapter

2

33

3025460

plug, pipe

1

1/8 npt

34

3078053

screw, captive washer cap

2

3/8 - 16 x 3 1/2"

35

3200386

clamp, tube

2

36

3200387

clamp, tube

2

37

3031404

connector, tube

2

38

s 1042 a

tee, male adapter

1

39

67950

clip

1

40

68139

elbow, male adapter

1

1/8 nptf x 7/16-20 (90)

41

173086

gasket, injector

1

42

3018310

bushing, reducing pipe

1

43

3019794

valve, check

1

44

3045025

plug, injector orifice

1

45

3200842

tube, fuel drain

1

46

3201074

tube, fuel supply

1

47

3201087

tube, fuel drain

1

48

3201115

tube, fuel supply

2

option

4-sale

part name

remarks

fv8012-01

n

fv8012-01

24volt dc rapid restart fuel

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image027.gif

ref no

part number

part name

req

remarks

fv8012-01

valve, fuel shutoff

24volt dc rapid restart fuel

valve suggested for automatic

cranking system.

3018453

valve, shutoff

1

1

3025458

plug, pipe

1

1/8 npt.

3053458

valve, fuel shutoff

1

2

129768

spring, valve

1

3

129839

shield, shutoff valve

1

129886

body, fuel shutoff valve

1

4

129826

body, shutoff valve

1

5

129838

knob

1

6

3279794

seal, o ring

1

7

3000266

shaft, shutoff valve

1

8

3034452

disc, actuator

1

9

196057

disc, valve

1

10

3034451

housing, actuator

1

11

3065944

screw, captive washer cap

4

#10 - 24 x 1 inch.

4024809

kit, fuel solenoid

1

12

129888

seal, rectangular ring

2

13

3054609

solenoid

1

serviced as 4024809.

mp1356

mtg, fuel shutoff valve

1

14

181466

washer, lock

2

1/4 inch.

15

s 189 c

screw, socket head cap

2

1/4 - 20 x 1 3/4 inch.

16

67684

washer, plain

2

1/4 inch.

17

154087

seal, rectangular ring

1

option

4-sale

part name

remarks

fw4105-01

n

fw4105-01

for twin-disc 4 mo2000

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image028.gif

ref no

part number

part name

req

remarks

fw4105-01

flywheel

for twin-disc 4 mo2000

modulating type clutch and

torque converter. wheel no.

140 of sae standard j927 a.

3027240

flywheel

1

1

206804

flywheel

1

2

4851

gear, flywheel ring

1

3

206354

screw, head locking

9

5/8 - 18 x 3 1/4 inch.

4

200861

washer, plain

9

5/8"

option

4-sale

part name

remarks

hd4106

n

hd4106

cover plate with oil fill

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image029.gif

ref no

part number

part name

req

remarks

hd4106

plate cover

cover plate with oil fill

tube for rear of front

gear cover when no

hydraulic pump drive

provision is specified.

1

s 103 d

screw, hexagon head cap

1

3/8 - 16 x 1 1/4"

2

s 604

washer, lock

1

3/8"

3

3003123

insert, pump drive

1

4

3007380

gasket, hydraulic pump

1

5

3012472

screw, captive washer cap

4

3/8 - 16 x 1 1/2"

6

s 123a

screw, hexagon head cap

1

5/8 - 18 x 2 inch.

7

3017346

washer, plain

1

5/8"

8

3200772

washer, plain

1

5/8"

9

3088374

bracket, oil tube

1

option

4-sale

part name

remarks

im4006-03

n

im4006-03

aftercooled intake manifold.

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image030.gif

ref no

part number

part name

req

remarks

im4006-03

intake manifold

aftercooled intake manifold.

for use on 1 piece gear cover

engines.

1

207378

tube, water transfer

1

2

3002179

tube, water transfer

1

3

3060567

screw, captive washer cap

2

3/8 - 16 x 2 3/4"

4

3012472

screw, captive washer cap

2

3/8 - 16 x 1 1/2"

5

209773

clamp, hose

6

3/4 - 1 3/4"

6

3010922

clip

1

7

3818271

hose, plain

2

8

144372

elbow, male adapter

1

9

3010595

screw, captive washer cap

2

3/8 - 16 x 1"

10

3010926

gasket, flange

1

11

3017276

hose, plain

1

12

3175687

tee, street pipe

1

13

3201384

tube, vent

1

14

3201401

connection, water transfer

1

15

3028291

seal, o ring

2

16

143950

connector, male

1

17

218893

boss

1

18

3010925

flange, weld

1

the Description: the Description: the Description: the Description: c:\program files (x86) \cummins\cepc3\snsearch\tmp00000004.gif

option

4-sale

part name

remarks

im4716-01

n

im4716-01

vent line plumbing for kt/kta

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image031.gif

ref no

part number

part name

req

remarks

im4716-01

intake manifold

vent line plumbing for kt/kta

thermostat housing without

mounted radiator or heat

exchanger.

1

143950

connector, male

1

3921724

tag, identificati

1

option

4-sale

part name

remarks

im4721-02

n

im4721-02

mounting for aftercooled

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image032.gif

ref no

part number

part name

req

remarks

im4721-02

intake manifold mounting

mounting for aftercooled

intake manifold. for use

with afc fuel pump. without

air compressor inlet plumbing

and noise panels.

1

3008466

plug, pipe

1

1/4 npt

2

s 604

washer, lock

24

3/8"

3

103271

screw, hexagon head cap

12

3/8 - 16 x 4"

4

123204

screw, hexagon head cap

2

3/8 - 16 x 2 1/2"

5

127362

washer, plain

24

3/8"

6

137868

screw, hexagon head cap

2

3/8 - 16 x 4 1/2"

7

137872

screw, hexagon head cap

8

3/8 - 16 x 7"

8

206277

gasket, intake manifold

6

9

3014304

seal, rectangular ring

12

10

s 103 d

screw, hexagon head cap

2

3/8 - 16 x 1 1/4"

11

s 604

washer, lock

2

3/8"

12

3011693

plate, cover

1

13

3201388

gasket, flange

1

option

4-sale

part name

remarks

im4738

n

im4738

thermostat housing assembly

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image033.gif

ref no

part number

part name

req

remarks

im4738

themostat hsg. assy.

thermostat housing assembly

for use with aftercooled

intake manifold.

includes thermostats.

3065803

thermostat housing

1

1

s 962 e

draincock

1

2

3076489

thermostat

2

3

186780

seal, thermostat

2

4

3008468

plug, pipe

4

1/2 npt

5

3008469

plug, pipe

2

3/4 npt

6

3010596

screw, captive washer cap

1

3/8 - 16 x 1 1/4"

7

3010597

screw, captive washer cap

5

3/8 - 16 x 3 3/4"

8

3010916

support, thm housing

1

9

3010918

gasket, thermostat housing

1

10

3010933

housing, thermostat

1

option

4-sale

part name

remarks

lf4050-02

n

lf4050-02

oil filter

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image034.gif

ref no

part number

part name

req

remarks

lf4050-02

oil filter

oil filter

dual spin on, full flow lube

filters

mounted high and to the rear

on fuel pump side.

for use with starter

mounted on right side

(exhaust side) of engine.

filter model lf670.

1

3889310

element, lub oil filter

2

purchase from fleetguard

4910285

assembly, lub oil filter

1

3037536

plug, threaded

4

9/16 - 18 unf

2

3037537

seal, o ring

1

3

3040813

plug, threaded

1

3040818

plug, threaded

2

1 3/16 - 12 un

4

3035228

seal, o ring

1

5

3040819

plug, threaded

1

6

3081507

plunger, filter head

2

7

3090441

spring, valve

2

3201583

plug, threaded

1

1 5/16 - 12 un

8

3040911

plug, threaded

1

9

3201585

seal, o ring

1

10

4910284

head, lub oil filter

1

11

3034578

adapter, filter head

2

12

4000436

gasket, lub oil fil cover

1

13

3040838

screw, captive washer cap

6

3/8 - 16 x 1 1/4"

option

4-sale

part name

remarks

lf4708-03

n

lf4708-03

oil filter connection

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image035.gif

ref no

part number

part name

req

remarks

lf4708-03

oil filter connection

oil filter connection

connector for use with step

timing control and oil bypass

filter option of4015 when

lube oil filters are mounted

on the fuel pump side.

1

s 967

bushing, reducing pipe

1

2

s 1039 a

connector, male

1

3

s 1040 a

elbow, male adapter

1

4

3175687

tee, street pipe

1

5

3088214

connector, female

6

3201585

seal, o ring

1

option

4-sale

part name

remarks

lg4050-02

n

lg4050-02

oil level gauge

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image036.gif

ref no

part number

part name

req

remarks

lg4050-02

oil level gauge

oil level gauge

40.4 inch tube and dipstick

combination.

calibrated for 5 degree

+ or - 1 degree power angle

and 0 degree tilt.

bend in tube is 14.6" from

top.

located in handhole cover

fuel pump side.

used with deep centre rear

sump oil pan.

1

3000508

tube, oil gauge

1

2

3077141

dipstick

1

3

3065678

tube, oil gauge

1

4

3201128

nut, regular hexagon

1

3/8 - 16 unc

5

s 602

washer, plain

1

3/8"

6

108722

clip

1

7

196421

support, tube clip

1

8

3038076

screw, captive washer cap

1

3/8 - 16 x 15/16"

option

4-sale

part name

remarks

of4015

n

of4015

by-pass oil filter plumbed to

option

4-sale

part name

remarks

of4714

n

of4714

plumbing with standard hose

ref no

part number

part name

req

remarks

of4714

filter, oil bypass

plumbing with standard hose

for spin-on oil by-pass

filter.

includes mounting to secure

filter head to sae #1

flywheel housing for

shipment.

144378

elbow, male adapter

1

3088398

bypass filter mtg

1

s 112

screw, hexagon head cap

2

3/8 - 16 x 1 inch.

s 223

nut, heavy hexagon

2

3/8 - 16 unc.

68645

elbow, male adapter

2

108330

washer, plain

2

3/8 inch.

144378

elbow, male adapter

1

3035624

screw, captive washer cap

2

3/8 - 16 x 1 1/2 inch.

3088297

bracket, filter

1

3634310

hose, flexible

2

option

4-sale

part name

remarks

of4714-02

n

of4714-02

plumbing with standard hose

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image038.gif

ref no

part number

part name

req

remarks

of4714-02

bypass filter plumbing

plumbing with standard hose

for spin-on oil by-pass

filter. includes mounting to

secure filter head to sae #1

flywheel housing for

shipment.

1

3634310

hose, flexible

2

2

s 112

screw, hexagon head cap

2

3/8 - 16 x 1"

3

s 223

nut, heavy hexagon

2

3/8 - 16 unc

4

68645

elbow, male adapter

2

5

108330

washer, plain

2

3/8"

6

144378

elbow, male adapter

2

7

3035624

screw, captive washer cap

2

3/8 - 16 x 1 1/2"

8

3088297

bracket, filter

1

option

4-sale

part name

remarks

op4032-03

n

op4032-03

cast aluminium deep centre

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image039.gif

ref no

part number

part name

req

remarks

op4032-03

oil pan

cast aluminium deep centre

rear sump oil pan without

baffle. includes oil pan

adapter. oil pan has oil

drain and by-pass filter

return on both sides. oil

level without rear gear train

is 12.5gallons (47.3liter)

high and 10.5 gallons (40

litre) low. with rear gear

train 14.5gallons (54.9liter)

high and 12.5gallons (47.3

litre) low.

1

3088256

pan, oil

1

2

s 129

screw, hexagon head cap

1

3/8 - 24 x 1 inch.

3

s 610

washer, lock

2

7/16"

4

108330

washer, plain

3

3/8"

5

129069

nut, lock

1

3/8 - 24 unf

6

3003755

brace, tube

1

7

3079754

gasket, oil suc connection

1

8

3010595

screw, captive washer cap

2

3/8 - 16 x 1"

9

3085752

screw, hexagon head cap

2

7/16 x 4 1/2"

10

3200706

clip

2

11

3035299

tube, lub oil suction

1

12

3160923

adapter, oil pan

1

13

3040838

screw, captive washer cap

18

3/8 - 16 x 1 1/4"

14

3070780

cover, oil pan adapter

1

15

3073213

gasket, adapter

1

option

4-sale

part name

remarks

op4716-05

n

op4716-05

oil pan and oil pan adapter

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image040.gif

ref no

part number

part name

req

remarks

op4716-05

oil pan

oil pan and oil pan adapter

mounting

for use with cast iron

flywheel housings and without

rear gear train.

1

3035624

screw, captive washer cap

33

3/8 - 16 x 1 1/2"

2

3042590

gasket, oil pan

1

3

s 181 c

screw, hexagon head cap

1

1/2 - 20 x 3/4"

4

130914

washer, sealing

1

5

s 609

washer, lock

1

9/16"

6

s 622

washer, plain

2

3/8"

7

s 689

washer, plain

1

1/2"

8

153518

seal, rectangular ring

4

9

3012481

screw, captive washer cap

2

7/16 - 14 x 1 1/2"

10

3013786

plug, pipe

1

3/8 npt

11

3069844

seal, rectangular strip

2

12

3070679

screw, hexagon head cap

19

3/8 - 16 x 1 3/4"

13

3085751

screw, hexagon head cap

11

14

3085753

screw, hexagon head cap

1

15

3085886

washer, plain

30

16

4000595

gasket, oil pan adapter

1

option

4-sale

part name

remarks

op4790

n

op4790

plumbing, oil pan

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image041.gif

ref no

part number

part name

req

remarks

op4790

oil pan plumbing

plumbing, oil pan

high oil pan capacity: 12.5

provision for sightblass: no

sightglass included: no

prelube: no engine heater

included: no

remote drain included: no

oil drain accessory: yes

drain location: left side:

1 7/8 - 12 un-2 b right side:

1 7/8 - 12 un-2 b access

ports - both sides.

1

3008468

plug, pipe

2

1/2 npt

2

3008470

plug, pipe

2

1 npt

3883200

plug, threaded

1

1 1/16-12 unf

3

3046943

seal, o ring

1

4

3883201

plug, threaded

1

1 1/16-12 unf

option

4-sale

part name

remarks

pp4130-01

n

pp4130-01

cylinder head

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image042.gif

ref no

part number

part name

req

remarks

pp4130-01

cylinder head

cylinder head

1

3634664

gasket, cylinder head

6

3013962

head, cylinder mtg

6

2

3032633

screw, twelve point cap

6

3/4 - 16 x 8"

3

3086362

crosshead, valve

2

4

205059

washer, plain

6

3/4"

option

4-sale

part name

remarks

pp4707-06

n

pp4707-06

hydraulic variable timing

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image043.gif

ref no

part number

part name

req

remarks

pp4707-06

hydraulic variable timing

hydraulic variable timing

includes:

* solenoid valve

* fuel pressure switch

* wiring harness

for use with grounded 24 volt

system.

1

3408606

switch, pressure

1

3065825

tubing, hvt check valve

1

2

s 607

washer, lock

4

#10.

3

70620

washer, plain

4

1/8 inch.

118346

union, male

2

4

3037537

seal, o ring

1

5

3100515

union, male

1

6

118347

elbow, male union

1

7

192861

screw, socket head cap

4

#10 - 24 x 1 inch.

8

180372

clip

4

3035738

valve, shutoff

1

9

3065944

screw, captive washer cap

4

#10 - 24 x 1 inch.

10

129768

spring, valve

1

11

129839

shield, shutoff valve

1

12

129888

seal, rectangular ring

2

13

138764

screw, pan head cap

2

#10 - 24 x 3/4 inch.

14

145536

seal, o ring

1

15

196057

disc, valve

1

16

3015521

ball

1

17

3034451

housing, actuator

1

18

3035739

body, shutoff valve

1

19

3035740

cover, shutoff valve

1

20

3041466

disc, actuator

1

21

3054609

solenoid

1

serviced as 4024809.

22

3037658

bracket, shutoff valve

1

23

3067880

harness, wiring

1

24

68138

connector, male

1

25

68143

clip

1

26

112105

elbow, male adapter

1

27

3025460

plug, pipe

1

1/8 npt.

28

3629505

tee, street pipe

1

29

3202220

tube, pressure sensing

1

30

3038743

valve, check

1

31

ak 6008 ss

hose, flexible

1

option

4-sale

part name

remarks

pp4711-03

n

pp4711-03

cylinder heads for normal

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image044.gif

ref no

part number

part name

req

remarks

pp4711-03

cylinder head

cylinder heads for normal

duty cycle. uprater

construction and power

applications.

3811986

cylinder head

6

1

205091

collet, valve

8

2

205094

retainer, valve spring

4

3

3088393

valve, intake

2

4

3088389

valve, exhaust

2

serviced as 3803528

5

3633840

spring, valve

4

6

3081081

rotator, valve

4

7

3635250

pin, groove

2

8

3086192

insert, valve

2

10

205401

plug, expansion

8

11

206224

plug, expansion

2

12

67622

plug, pipe

1

3/8 npt

13

s 915 a

plug, pipe

1

1/2 npt

14

3081064

head, cylinder

1

15

203933

plug, expansion

1

16

3086191

insert, valve

2

17

3202210

guide, valve stem

4

option

4-sale

part name

remarks

ps4014

n

ps4014

90 degree oil drain fitting

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image045.gif

ref no

part number

part name

req

remarks

ps4014

oil drain accessory

90 degree oil drain fitting

with cap. use with pans

having 1 1/16 - 12 drain

hole. mounted on engine in

centre drain hole of oil pan.

first used by international

hough for the td-25 dozer.

1

3047340

elbow, male union

1

2

3047341

cap, tube

1

option

4-sale

part name

remarks

sp8106

n

sp8106

fan spacer and pilot

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image046.gif

ref no

part number

part name

req

remarks

sp8106

spacer, fan pilot

fan spacer and pilot

fan pilot providing a total

of 1.50inches (38mm) of fan

spacing.

fits fan hubs with 3.18in

(81mm) bore has 3.00in (76mm)

fan pilot and six mounting

holes on 5.50in (140mm) bolt

circle

includes capscrews for

customer mounting

supplied in kit.

special option for belaz 55

mt rdt application.

1

219125

spacer, fan pilot

1

2

216701

screw, hexagon head cap

6

1/2 - 13 x 3 inch.

option

4-sale

part name

remarks

ss4021

n

ss4021

rocker housings for use with

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image047.gif

ref no

part number

part name

req

remarks

ss4021

rocker housings

rocker housings for use with

hydraulic variable timing.

includes bosses between

rocker housings for lifting

of engine. rear rocker

housing is machined for

mounting of air cleaner

bracket.

3047708

housing, rocker

1

3039100

assy, rocker lever housing

1

1

205129

dowel, ring

1

2

3202198

housing, rocker lever

1

3039097

assy, rocker lever housing

5

1

205129

dowel, ring

1

3

3177713

housing, rocker lever

1

4

3008469

plug, pipe

1

3/4 npt

option

4-sale

part name

remarks

ss4021-02

n

ss4021-02

rocker housings for use with

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image048.gif

ref no

part number

part name

req

remarks

ss4021-02

lifting arrangement

rocker housings for use with

hydraulic variable timing.

includes bosses between

rocker housings for lifting

of engine. rear rocker

housing is machined for

mounting of air cleaner

bracket.

1

205129

dowel, ring

6

2

3177713

housing, rocker lever

5

3

s 995

plug, pipe

1

3/4 npt.

4

3202198

housing, rocker lever

1

option

4-sale

part name

remarks

st4010

n

st4010

for sae #1 flywheel housing

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image049.gif

ref no

part number

part name

req

remarks

st4010

starter mounting

for sae #1 flywheel housing

with access slot and dry

application. mounts starter

on right side of engine,

facing flywheel.

1

s 181

screw, hexagon head cap

3

5/8 - 11 x 1 1/4"

2

s 603

washer, lock

3

5/8"

3

62182

cover starter flange

1

4

s 603

washer, lock

3

5/8"

5

202159

screw, twelve point cap

3

5/8 - 11 x 2 1/4".

6

3067168

spacer, starting motor

1

option

4-sale

part name

remarks

st4072-02

n

st4072-02

starting motor

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image050.gif

ref no

part number

part name

req

remarks

st4072-02

starting motor

starting motor

manufacturer/model: delco/50

mt branded for cummins

voltage: 24volt

number of starters: one

insulated, cw rotation

included ground strap mounts

on exhaust side of engine

solenoid locatoin: 277.5

degrees

unique characteristics:

not compatible with d19

aluminium flywheel housings

semi-solid link solenoid:

yes.

1

4906788

motor, starting

1

2

3018924

wire, ground

1

option

4-sale

part name

remarks

tb4033-03

n

tb4033-03

dry exhaust manifold and air

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image051.gif

ref no

part number

part name

req

remarks

tb4033-03

exhaust manifold and turbo

dry exhaust manifold and air

crossover for the two-stage

turbochargers with right side

out exhaust.

includes high temperature

manifolds and premium exhaust

manifold mounting hardware.

1

s 626

washer, plain

1

5/16"

2

108722

clip

2

3

109557

washer, plain

8

1/4"

4

207214

pipe, air inlet

1

5

3021470

screw, captive washer cap

3

5/16 - 18 x 3/4"

6

3022590

screw, captive washer cap

5

5/16-18 x 1"

7

3023066

seal, o ring

3

8

3032161

gasket, connection

1

9

3032864

connection, air crossover

1

10

3035624

screw, captive washer cap

2

3/8 - 16 x 1 1/2"

11

3040839

screw, captive washer cap

2

12

3060940

brace, retaining

3

13

3088371

seal, dust

2

14

3088411

brace, retaining

1

15

3037824

manifold, exhaust

2

16

s 172 b

screw, hexagon head cap

1

3/8 - 16 x 1 1/8"

17

s 223

nut, heavy hexagon

1

3/8 - 16 unc

18

s 602

washer, plain

2

3/8"

19

3038763

seal, o ring

1

20

3040878

clamp, t bolt

2

5 3/4"

3065786

connection, air intake

1

21

3040838

screw, captive washer cap

6

3/8 - 16 x 1 1/4"

22

3065783

connection, air intake

1

23

3065784

gasket, connection

1

24

3065785

connection, air intake

1

25

3065801

hose, plain

1

26

3088418

clip

1

27

3035310

washer, plain

4

3/8 inch.

28

3043097

gasket, exhaust manifold

6

29

3046283

screw, hex flange head cap

20

7/16 - 14 x 3".

30

3046286

spacer, mounting

20

31

3066497

screw, hex flange head cap

4

7/16 - 14 x 5 1/2 inch.

32

3088317

lockplate

12

33

206576

gasket, turbocharger

1

34

3056158

nut, hexagon flange

8

3/8 - 24 unf

35

3010915

stud

4

36

3177942

gasket, turbocharger

1

3166256

assembly, exhaust mfld

1

35

3010915

stud

4

37

3080980

manifold, exhaust

1

38

108330

washer, plain

4

3/8"

39

201989

clamp, v band

1

40

3049016

sleeve, exhaust connection

1

41

3275479

screw, hexagon head cap

4

3/8 - 16 x 1 1/4"

42

3202181

support, turbocharger

1

option

4-sale

part name

remarks

tb4753-06

n

tb4753-06

plumbing for two-stage

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image052.gif

ref no

part number

part name

req

remarks

tb4753-06

turbo mounting

plumbing for two-stage

turbochargers with right side

out exhaust.

for use with mounted torque

conveter cooler.

3077993

turbocharger mtg

1

1

s 112

screw, hexagon head cap

1

3/8 - 16 x 1"

2

s 223

nut, heavy hexagon

1

3/8 - 16 unc

3

s 602

washer, plain

3

3/8"

4

s 604

washer, lock

1

3/8"

6

3200281

washer, plain

1

3/8 inch.

5

3200393

clip

1

7

4000574

brace, tube

1

3096214

turbo oil drain

1

4

s 604

washer, lock

2

3/8"

8

as16020n f

hose

1

9

43828 a

clamp, hose

2

11 16 - 1 1/2"

10

191772

screw, twelve point cap

2

3/8 - 16 x 1 1/4 inch.

11

3202117

gasket, connection

1

12

3200158

tube, tur oil drain

1

13

3003536

coupling, elbow hose

1

3096215

turbo oil drain

1

4

s 604

washer, lock

2

3/8"

9

43828 a

clamp, hose

2

11 16 - 1 1/2"

10

191772

screw, twelve point cap

2

3/8 - 16 x 1 1/4"

11

3202117

gasket, connection

1

14

as16027n f

hose, flexible

1

15

3032862

tube, tur oil drain

1

3096222

turbo oil supply

1

16

3026793

clip

2

3081950

union, male

1

1 - 14 x 3/4 - 16

17

3037537

seal, o ring

1

18

3085824

union, male

1

19

3922794

seal, o ring

1

3081981

tee, male union

1

19

3922794

seal, o ring

3

20

3085847

tee, male union

1

21

3086055

hose, flexible

1

3096223

turbo oil supply

1

3081950

union, male

1

17

3037537

seal, o ring

1

18

3085824

union, male

1

19

3922794

seal, o ring

1

21

3086055

hose, flexible

1

22

4084811

tube, lub oil supply

1

option

4-sale

part name

remarks

tc4023-05

n

tc4023-05

lube oil cooler

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image053.gif

ref no

part number

part name

req

remarks

tc4023-05

lube oil cooler

lube oil cooler

cast iron engine oil cooler

with mounted parallel flow

torque converter cooler.

for use with engine oil

filters mounted on fuel pump

side.

1

3011224

tube, water bypass

1

2

70624

seal, o ring

1

3

3085733

connection, water bypass

1

4

3010596

screw, captive washer cap

2

3/8 - 16 x 1 1/4"

5

3015283

screw, captive washer cap

1

5/16 - 18 x 3/4"

6

3056787

clamp, hose

2

1 13/16 - 2 3/4"

7

3060912

gasket, connection

1

8

3063240

hose, plain

1

9

3201287

clip

1

10

s 103 c

screw, hexagon head cap

8

3/8 - 24 x 3 3/4 inch.

11

s 602

washer, plain

2

3/8"

12

s 923 e

draincock

1

13

s 962 e

draincock

1

14

127362

washer, plain

11

3/8"

15

206973

gasket, oil cooler core

4

16

212161

seal, o ring

8

17

3002126

nut, lock

4

18

3012473

screw, captive washer cap

2

3/8 - 16 x 1 3/4"

19

3012474

screw, captive washer cap

2

3/8 - 16 x 2"

20

3013222

screw, hexagon head cap

8

3/8 - 16 x 9"

3037536

plug, threaded

1

9/16 - 18 unf

21

3037537

seal, o ring

1

22

3040813

plug, threaded

1

23

3042329

washer, plain

8

3/8"

24

3042372

cover, tor cnv oil cooler

1

25

3065791

gasket, tor cnv oil cooler

1

26

3065792

gasket, tor cnv oil cooler

1

27

3085955

housing, oil cooler

1

28

3090449

housing, tor cnv cooler

1

3200781

plug, drain

1

29

145540

seal, o ring

1

30

206256

plug, threaded

1

1 3/4 - 18 uns

31

3635074

core, cooler

2

3202101

plug, threaded

2

1 1/16 - 12 unf

32

3046943

seal, o ring

2

33

3050897

plug, threaded

2

34

4095097

core, cooler

2

serviced as 3804935.

35

s 604

washer, lock

11

3/8"

36

205275

screw, twelve point cap

4

3/8 - 16 x 1 3/4"

37

3033038

screw, captive washer cap

2

3/8 - 16 x 1 5/8"

38

3040838

screw, captive washer cap

10

3/8 - 16 x 1 1/4"

39

3042890

screw, captive washer cap

7

3/8 - 16 x 4"

40

3062410

screw, hexagon head cap

7

3/8 - 16 x 11 1/4 inch.

41

3065790

gasket, lub oil clr hsg

1

3040995

plug, threaded

1

9/16 - 18 unf.

42

3037537

seal, o ring

1

43

3040809

plug, threaded

1

44

3042889

screw, captive washer cap

1

3/8 - 16 x 1 7/8"

option

4-sale

part name

remarks

tc4712-03

n

tc4712-03

water pump to torque

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image054.gif

ref no

part number

part name

req

remarks

tc4712-03

water pump

water pump to torque

converter lub oil cooler

connection.

for kta/ktta engines.

3200215

connection, water pump

1

1

3004249

connection, water outlet

1

2

205289

gasket, wtr trf connection

1

3

207378

tube, water transfer

1

4

3028291

seal, o ring

2

option

4-sale

part name

remarks

tl8007-01

n

tl8007-01

two hole rigid type lever

the Description: the Description: the Description: D:\Организации\ЗАО ПАРТСЕРВИС\Справочная информация\Сайт the version September \KTTA-19.files\image055.gif

ref no

part number

part name

req

remarks

tl8007-01

throttle lever

two hole rigid type lever

.34 inch diameter with 4.00

and 5.00 centres. 110481

lever. variable speed type.

1

s 159 b

screw, hexagon head cap

1

1/4 - 28 x 1 1/2"

2

s 270

nut, regular hexagon

1

1/4 - 28 unf

3

s 600

washer, lock

1

1/4"

4

110481

lever, governor control

1

5

70704

washer, plain

2

1/4"

option

4-sale

part name

remarks

wm4003-01

n

wm4003-01

water transfer tubes for dry

ref no

part number

part name

req

remarks

wm4003-01

water manifold

water transfer tubes for dry

exhaust gear cover plate

design.

ar12333

tube, water transfer

5

207233

tube, water transfer

1

3028291

seal, o ring

2

143950

connector, male

1

201737

thermostat

2

© 1984-2003 cummins inc., box 3005, columbus, in 47202-3005 u.s.a.

Отправьте нам письмо.
